Upfitting a Ford Transit used to mean finding the right wire, splicing in, and moving on. Tap into discrete door wires for your interlock. Solder resistors into the SEIC (Stationary Elevated Idle Control) wiring and source the park brake signal for your idle control.
Those days are gone.
Today’s Transit routes door status, park, and parking brake information through an encrypted data bus, and the moment you cut into one of those circuits, the vehicle notices. Error codes appear. Warranty questions follow. Installs that used to take an afternoon turn into a troubleshooting session.

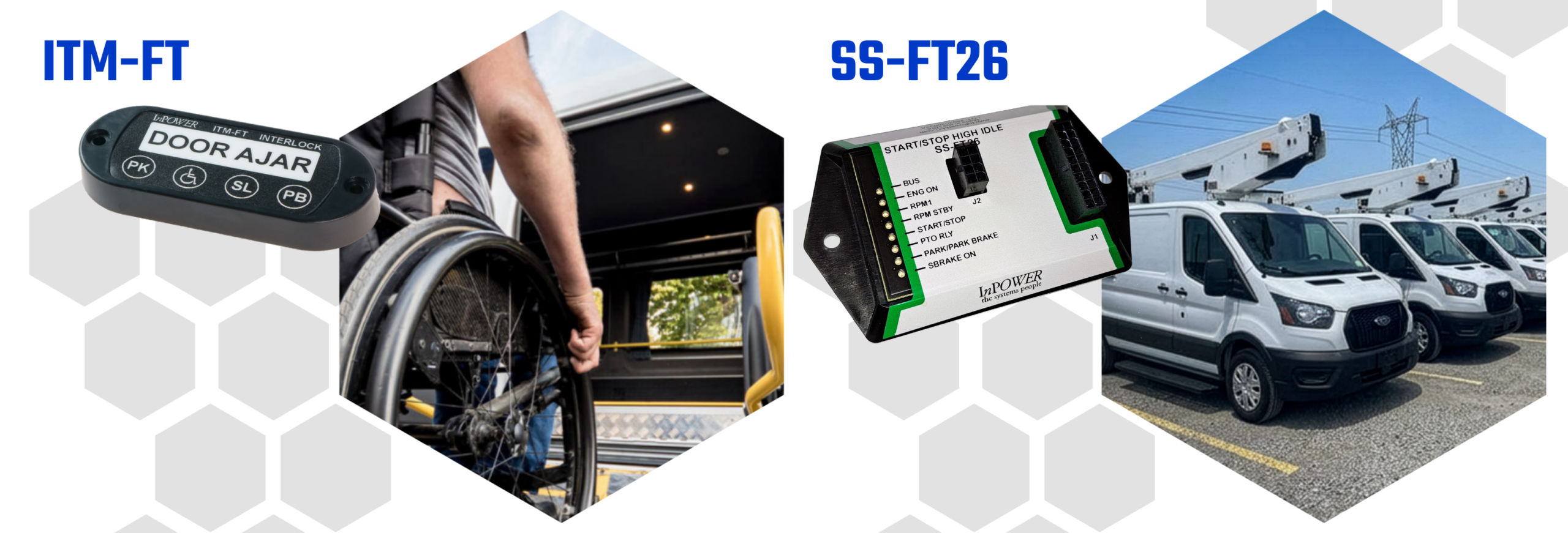

InPower builds for the vehicle as it is now, not as it used to be. Two products lead the way on the Ford Transit: the ITM-FT safety interlock and the SS-FT26 Stop/Start and high-idle module. They solve different problems. They share one idea. Both talk to the truck on its own terms.
Why doesn’t the old splice-and-tap method work on the Ford Transit anymore?
The old splice-and-tap method no longer works on the Ford Transit because the signals it relied on now travel on a digital data bus instead of on simple wires. Like many late-model work vehicles, the 2026 Transit routes door, park, and brake status through that bus, so cutting into a circuit triggers error codes and OEM lockouts. The signals you need are still there. They sit behind the vehicle’s computer.
The electronic parking brake replaced the lever you used to pull. Door locks tie into the security and alarm systems. Lighting runs on monitored, pulse-width modulated feeds that fault when you splice into them. As one customer told our team, “We just can’t keep doing things the old way anymore.” The hardware kept getting smarter. The wiring kept getting harder.
How does InPower pull signals without splicing wires?
InPower modules connect to the factory data bus and translate the messages already moving across it into clean output signals, without interfering with OEM functions. You get the park signal, the brake status, or the door state as a simple +12V or ground output, ready to wire into your build.
We have worked this way from the start. It began with our high-idle throttle controls, carried into our Start/Stop modules, and now runs through our full line of Ford and GM data bus products. Reading the bus instead of cutting into it keeps the vehicle happy and keeps your install clean. That single decision is what ties the ITM-FT and the SS-FT26 together.
How does the ITM-FT simplify a Ford Transit interlock install?
The ITM-FT pulls the Transit’s OEM door signals straight from the factory data bus, so installers skip the extra sensors and the wiring maze a safety interlock used to require.

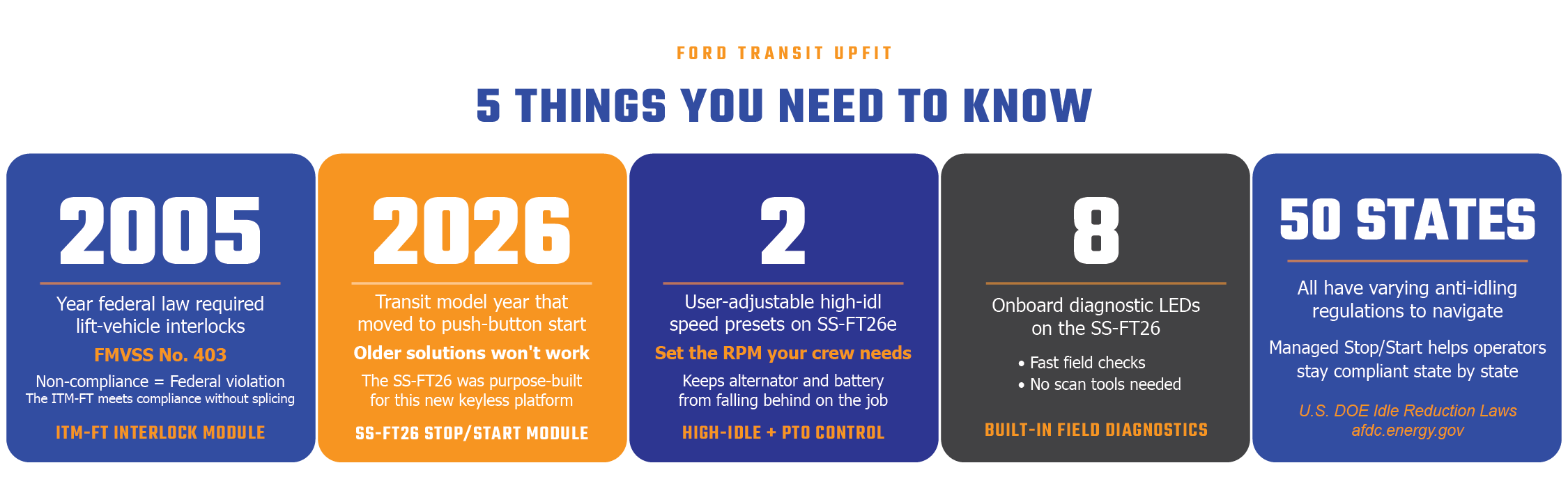

A safety interlock does one job that matters more than any other. It stops the vehicle from moving before a wheelchair lift or ramp is stowed. Federal law has required lift-vehicle interlocks on platform-lift vehicles since 2005 (FMVSS No. 403), and the requirement has not loosened since. The ITM-FT meets it without the clutter. Because it reads the OEM door data directly, you get faster installs and simpler troubleshooting, and you can still add your own door switches wherever a build calls for them. And because the ITM-FT supports both manual and electric park brake systems, it fits every Ford Transit from 2021 through 2026+, giving mixed-model fleets one interlock solution across the board.
For the full picture on how our interlocks handle compliance across Ford, GM, and Ram platforms, read InPower: Setting the Standard in Vehicle Safety Interlocks. You can also see the ITM-FT product page for fitment details.
How does the SS-FT26 control Stop/Start and high-idle on the 2026 Transit?
The SS-FT26 is the first user-controlled Stop/Start and high-idle module purpose-built for the 2026 Ford Transit’s push-button ignition. It gives operators on-demand engine control and high-idle power from a single integrated unit.
The 2026 model year changed the rules. Ford moved the Transit from a traditional ignition key to a keyless push-button start, and that change left earlier Stop/Start and high-idle solutions unable to work on the new platform. The SS-FT26 was built for it. It works with the keyless ignition, decodes the park and park brake signals off the data bus, and runs two user-adjustable high-idle presets. It manages PTO control and SEIC, and it reports status through eight onboard diagnostic LEDs that make a field check straightforward. One module replaces the separate controllers, aftermarket switches, and workaround wiring that an install like this used to demand.
Here is why it matters on the job. High-idle keeps the alternator and battery from falling behind when a crew runs equipment off the engine, and managed Stop/Start helps operators meet the anti-idling rules that now vary widely from state to state (U.S. DOE idle reduction laws). One unit covers both.
“Push-button start is great, but you can’t sit in the cab to hit it when you’re also up in a bucket and need your engine back on,” said Patrick Sullivan, Managing Partner and Operations Manager at InPower. “The SS-FT26 puts operators back in control of their own rigs.”
To see how integrated idle control saves upfit labor across our product line, read Take Control Over Idle Operation and Increase Your Power, or visit the SS-FT26 product page.

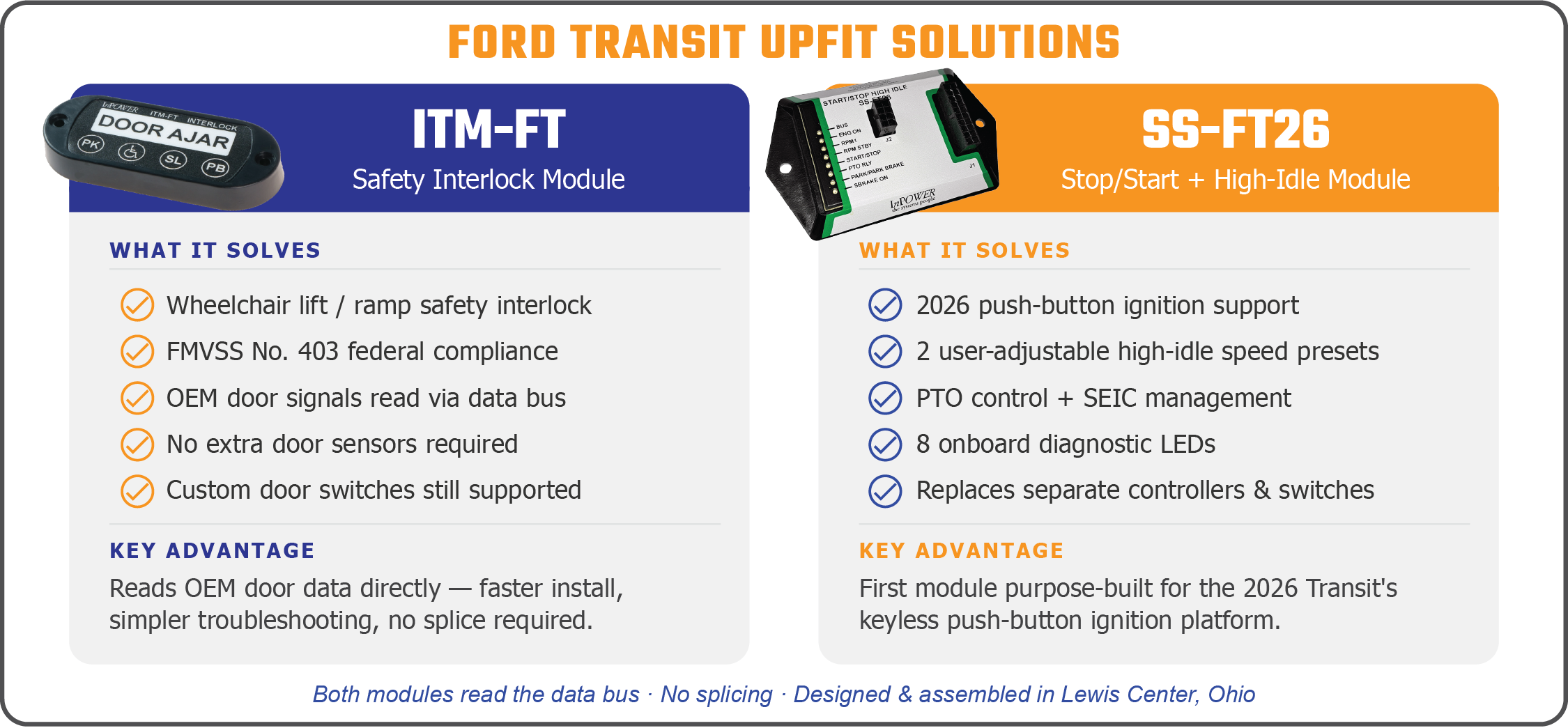

One platform, two products, one approach
The ITM-FT and the SS-FT26 solve different problems on the Ford Transit, but both work the same way. Read the data bus. Respect the OEM systems. Keep the install clean.
That thread runs through everything we build. We design and assemble our products in Lewis Center, Ohio, and we back them with people who answer the phone. When you call, you reach someone who knows the vehicle and can help you sort out the application.
Bring us your Ford Transit upfit and we will help you find the cleanest way through it. Call us today at 740-548-0965 to talk through the ITM-FT, the SS-FT26, or any signal the new Transit is hiding from you.
