VCM-03
Solid State Relay with Built-In On-Delay Timer Function
This VCM-03 On-Delay Timer Solid-State Relay ensures that connected equipment activates only after a defined time delay once power is applied. Ideal for sequencing power systems or reducing inrush current loads, it provides quiet, reliable performance in a compact, rugged package. Commonly used in lighting, HVAC, and safety systems in automotive or trailer applications, it improves component lifespan and system coordination by delaying load engagement.
Solid State On Delay Timer Relay ( VCM-03 )
Key Features:
- Standard automotive relay pin format
- 15 Amp output with over-current protection
- Dual inputs for either ground or power activation
- Sealed construction
- Fixed timer or adjustable available
Specifications:
- Operational voltage: 8 Vdc to 16 Vdc
- Input (87A) 12 Vdc; Input (87) ground
- Operational temperatures: -40 C to +85 C
- 15 Amp output rating, over-current protected
- Size: 2.3″” W X 1.75″” H X 1.25″” D
System Diagram:
Mechanical Drawing:
Product Literature and Resources:
Related Products
200 Amp Solid State Smart Battery Isolator
Learn More

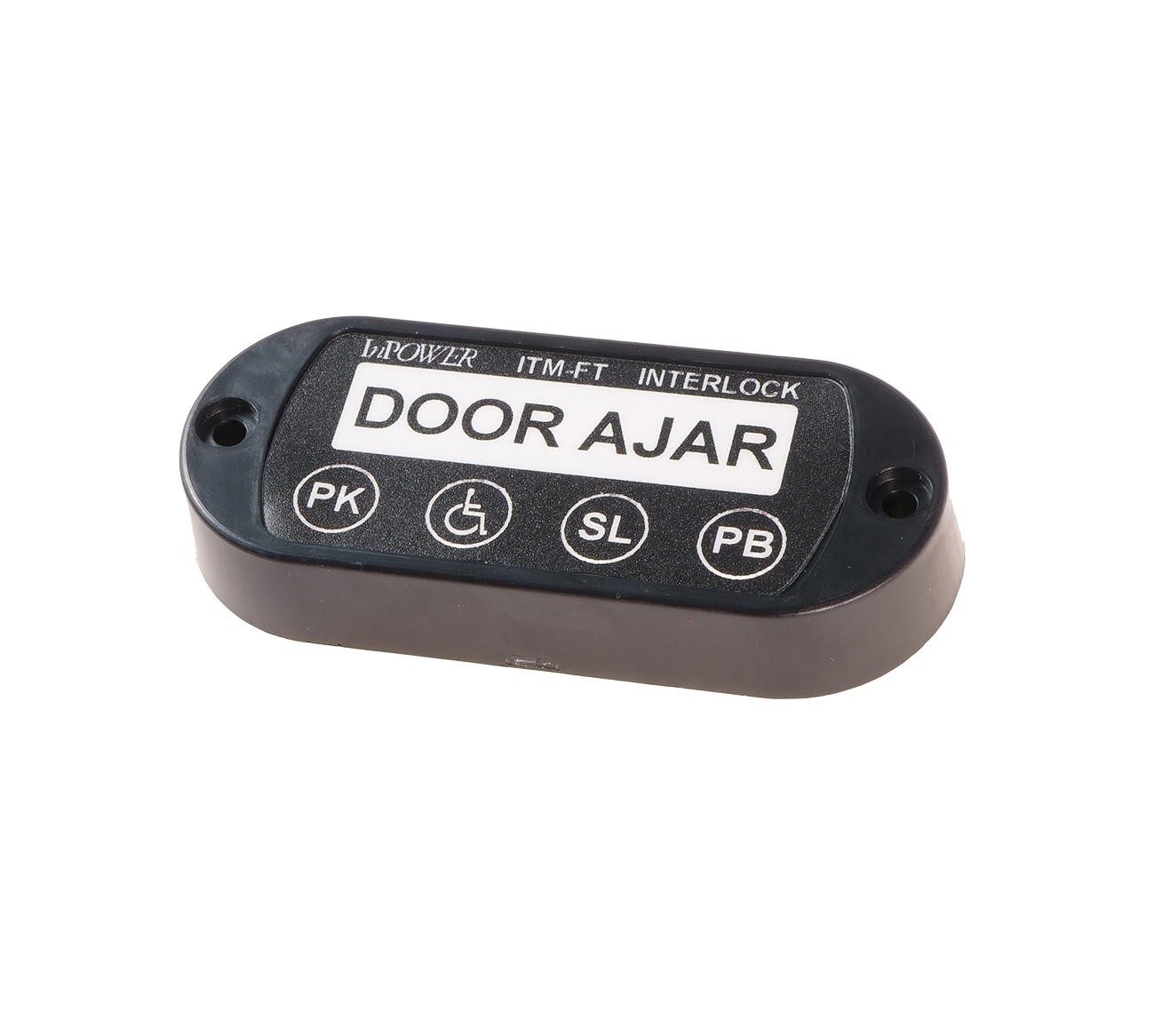

Wheelchair Lift Safety Interlock for Ford Transits
