HD2VCM

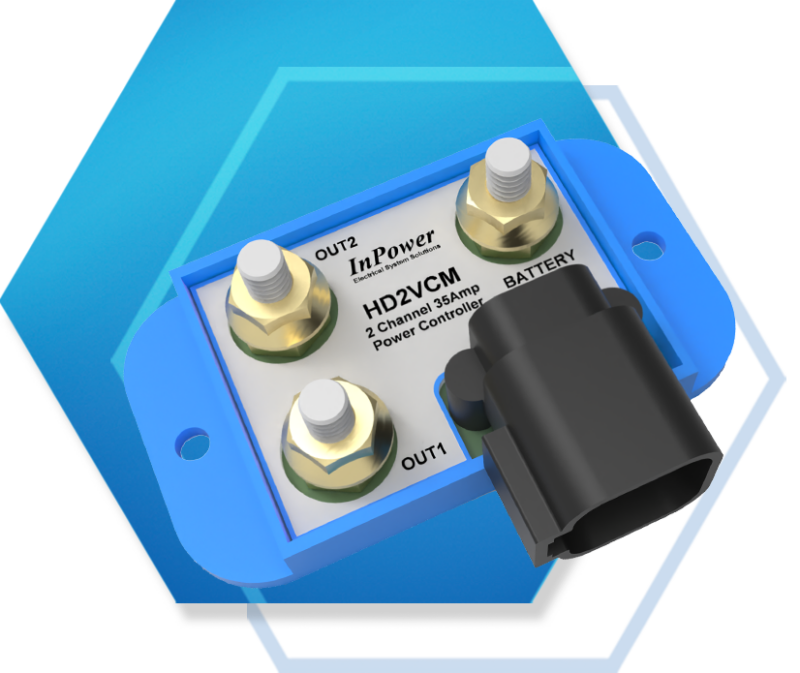

Dual Channel 12V 70 Amp Solid State Switch

The HD2VCM-01 has 3 inputs and 2 Outputs (2 x 35Amp 12V). The Control Inputs are Transition reponsive. IN1(↑+12) and IN3(↓GND) Control Output1 and IN2(↑+12) controls Output2.  IN1 and IN2 are Positive “↑+12”  Transition Sensitive, and IN3 is Negative “↓GND”   Transition Sensitive.

  • “↑+12” means Transition to 12V will trigger change on Output
  • “↓GND” means Transition to GND will trigger change on Output



[ HD2VCM, HD2VCM-01,  HD2VCM-03-10SF, HD2VCM-04-10SF, HD2VCM-05-10SF, HD2VCM-15 ]

Key Features:

  • Low Power Consumption: If the Control Voltages (IN1,IN2) are not active, current draw is zero.
  • Control: Provides precise control for two +12V 35 Amp feeds, allowing seamless switching of loads.
  • Versatility: Equipped with a microprocessor, enabling the controller to perform various functions based on customer-specified parameters.
  • Comprehensive Functionality: Offers voltage monitoring, current monitoring, low voltage disconnect, and efficient solid-state contactor control, providing a wide range of control options.
  • Command Interface: User-friendly control interface via a 6 Pin Deutsch connector ensuring easy and secure connectivity.
  • Customizable Configuration: InPower’s expert team can assist customers in selecting the appropriate configuration ensuring the best fit for your requirements.

Specifications:

  • Low Power Consumption: If the output is not active (IN1 & IN2 at GND, and IN3 is +12Vdc with No Transitions) current draw is 6mA.
  • Single Channel Control: Provides precise control for the two +12V 35 Amp feeds, allowing seamless switching of loads.
  • Versatility: Equipped with a microprocessor, enabling the controller to perform various functions based on customer-specified parameters.
  • Comprehensive Functionality Family Optional Configurations: Optional voltage monitoring, current monitoring, low voltage disconnect, and efficient solid-state contactor control, providing a wide range of optional control options – Contact InPower.
  • Command Interface: User-friendly control interface via a 6 Pin Deutsch connector ensuring easy and secure connectivity.
  • Customizable Configuration: InPower’s expert team can assist customers in selecting the appropriate configuration ensuring the best fit for your requirements.

Mechanical Drawings:

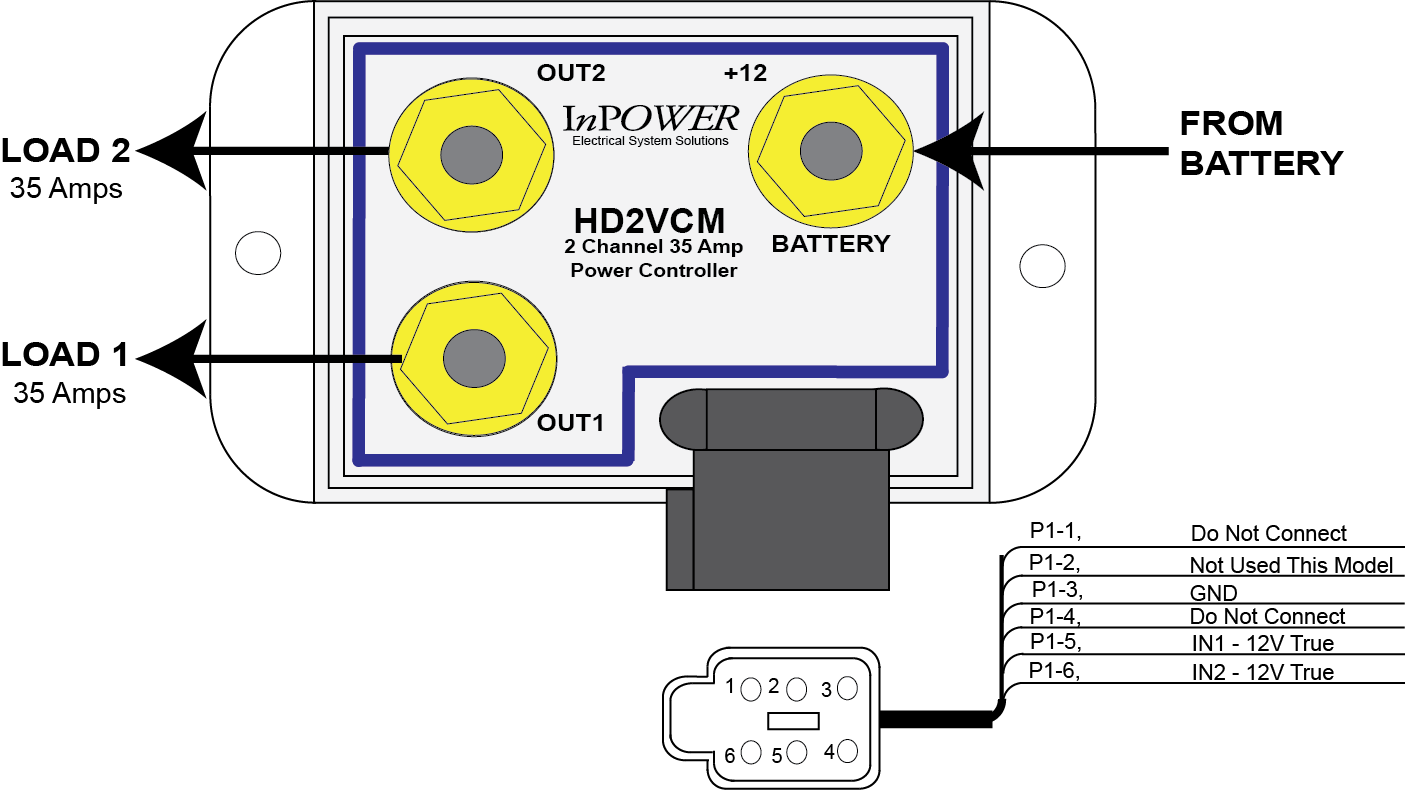

Diagram:
