2026 Ford Transit Park Brake Decoder

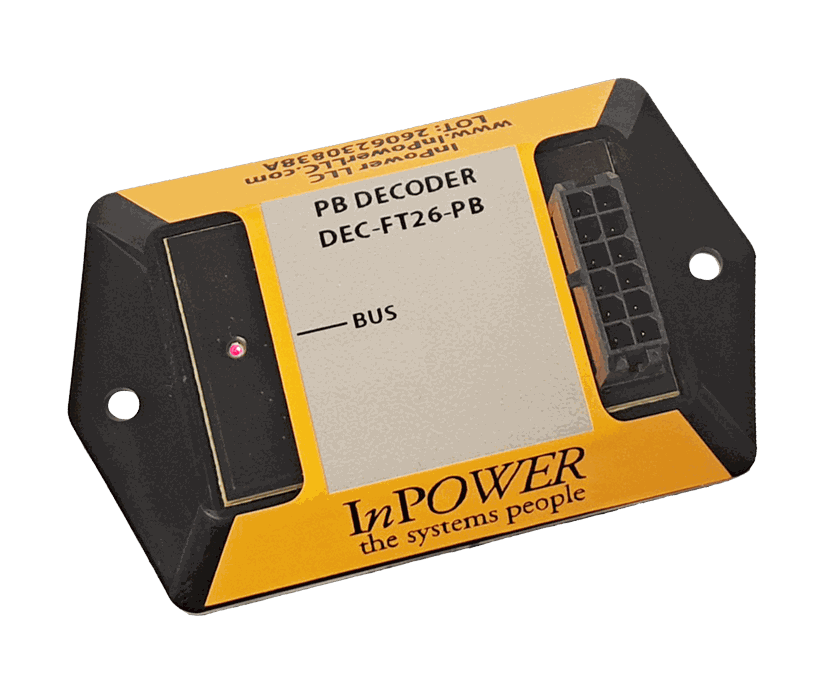

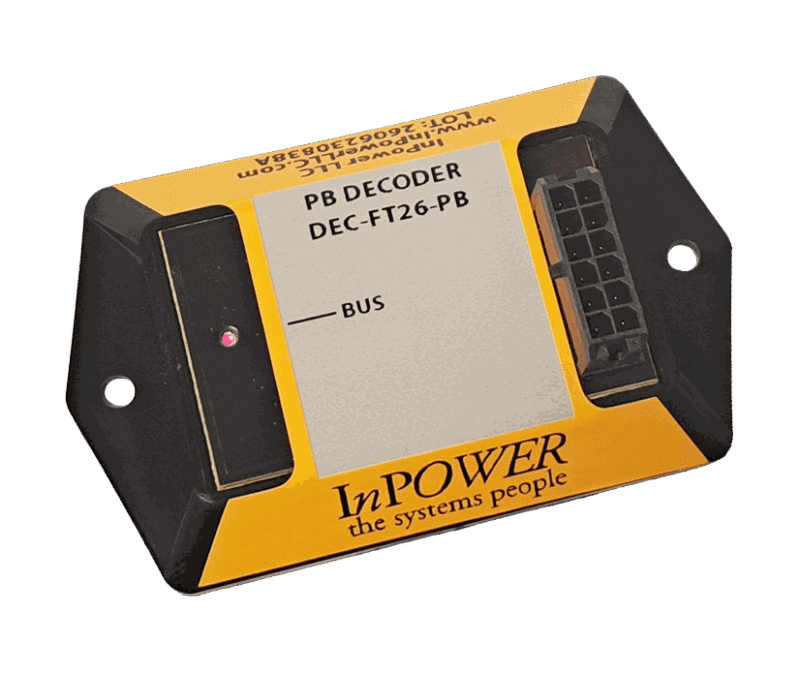

InPower’s DEC-FT26-PB Ford Park/Park Brake Data Bus Decoder provides discrete Park/Park Brake GND signals decoded from the Ford Chassis Data Bus. This decoder attaches to the rear of the Ford Steering Column Control Module (SCCM) to provide the connection to Power, Ground, and the Data Bus. Data collected on the Data Bus is decoded and provided to the user via discrete blunt cut wires.
Key Features:
- Provides Decoded Park Brake and Park Signals from the Data Bus (Both GND True), Engine Run (12V True), and Ignition (also 12V True)
- For use on 2026 Ford Transit Vehicles
- DEC-FTS4-PB Cable connects to the Ford Steering Column Control Module
- Low cost, fast, and easy installation
- Customized functions available
For use on 2026 Ford Transit
+12 Volts: Sourced from Steering Column Control Module (SCCM)
Ground: Sourced from Steering Column Control Module (SCCM)
Standby Current Iq: 2.5 mA
Enable: 12 Volt True Input (Enables Outputs) on Gray Wire
Ignition: Output (12V True) on Brown Wire
Park: Output (GND True) on Violet Wire
Park Brake GND: Output (GND True) on Dk Green Wire
Engine Run: Output (12V True) on Blue Wire
Output Max Current: 800 mA
Dimensions: 3.2 L x 1.9 W x 0.8 H inches
LED Status Indicators:
BUS Slow blink when power applied, but Enable is Low (Not Enabled)
Flashes when Enable is Hi, but CAN Bus is Inactive
Turns solid when CAN Bus is Active and Enable is High

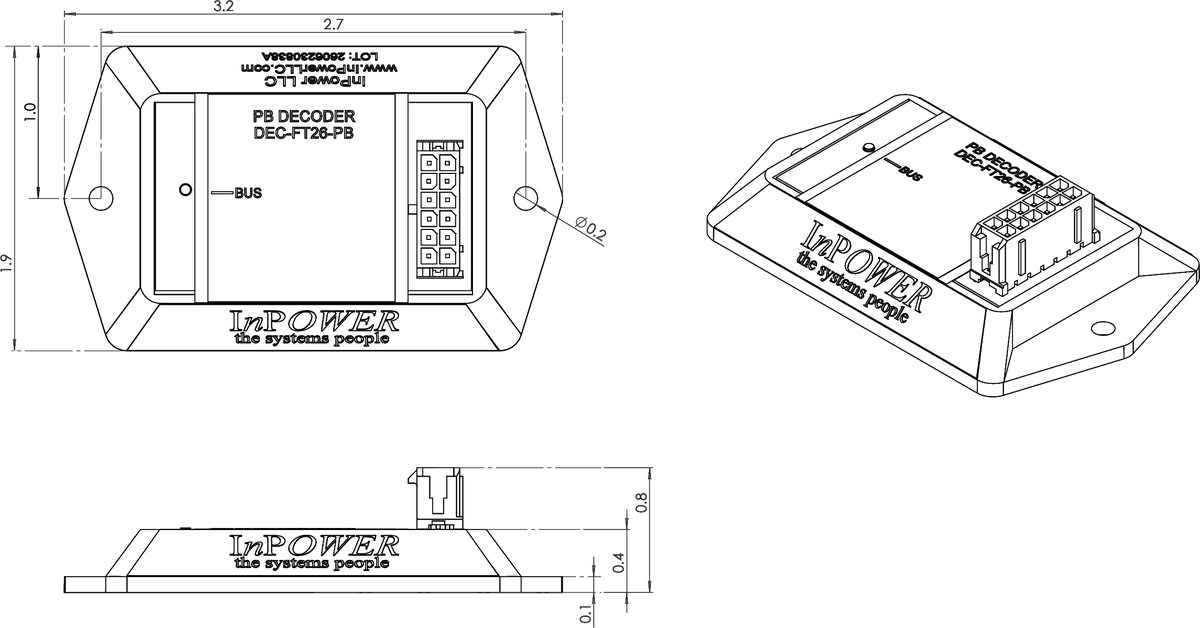

Mechanical Drawing:

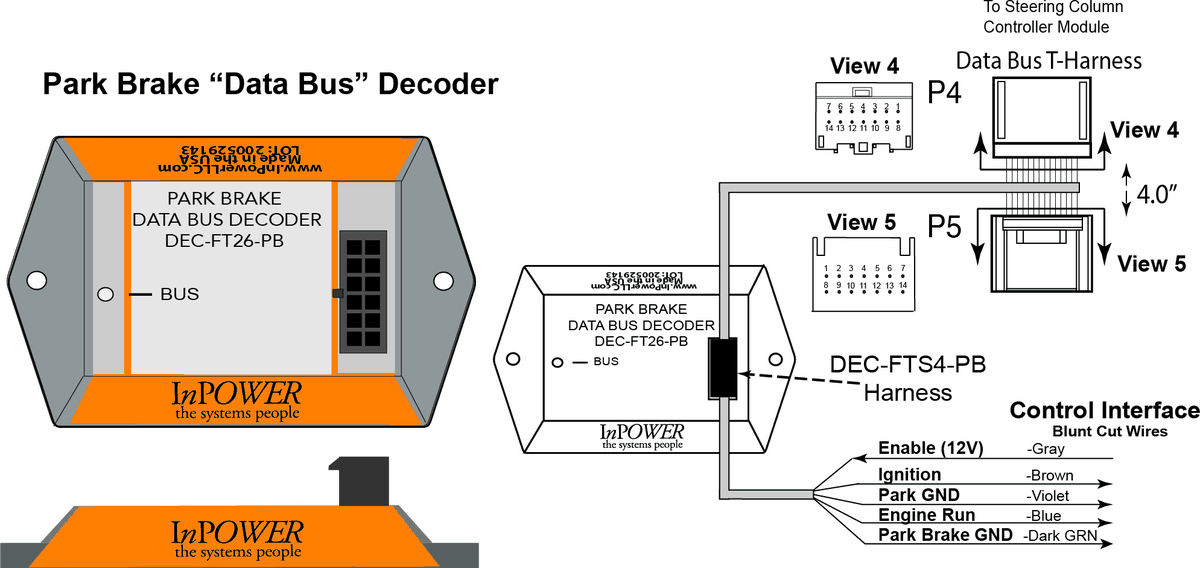

System Diagram:
Product Literature and Resources:
Contact InPower for all your electronic system needs: 1.740.548.0965 or [email protected]
