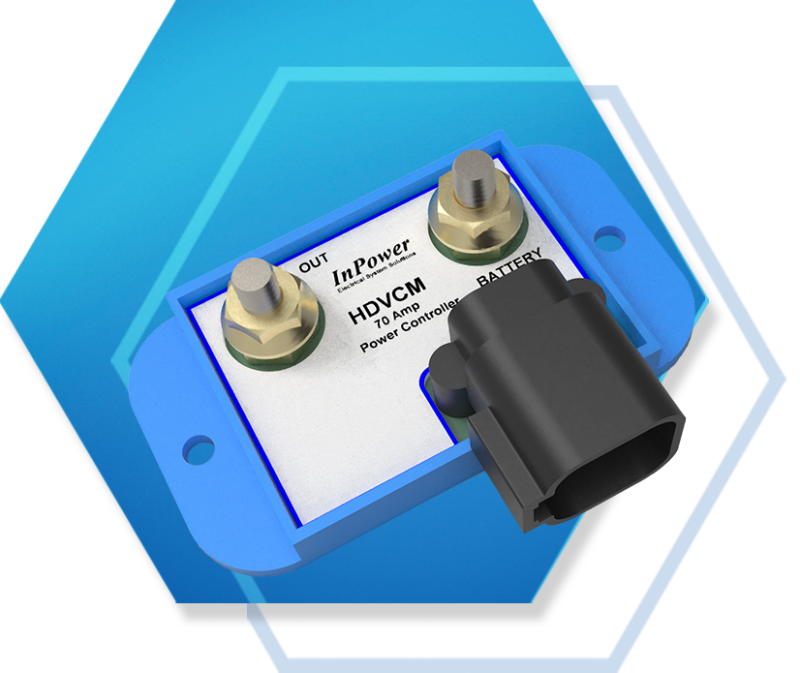

HDVCM

Single Channel 70Amp Latching Solid State Switch

The HDVCM-01 has 3 inputs and 1 Output (70Amp 12V). The Control Inputs are Transition responsive. IN1(↑+12), IN2(↑+12) and IN3(↓GND) Control the Output. IN1 and IN2 are Positive “↑+12” Transition Sensitive, and IN3 is Negative “↓GND” Transition Sensitive.

“↑+12” means Transition to 12V will trigger change on Output
“↓GND” means Transition to GND will trigger change on Output

Talk to a rep

[ HDVCM, HDVCM-01, HDVCM-03-10SF, HDVCM-04-10SF, HDVCM-05-10SF, HDVCM-15 ]

Key Features:

Low Power Consumption: If the Control Voltages (IN1,IN2) are not active, current draw is zero.
Control: Provides precise control for a +12V 70 Amp feed, allowing seamless switching of loads.
Versatility: Equipped with a microprocessor, enabling the controller to perform various functions based on customer-specified parameters.
Comprehensive Functionality: Offers voltage monitoring, current monitoring, low voltage disconnect, and efficient solid-state contactor control, providing a wide range of control options.
Command Interface: User-friendly control interface via a 6 Pin Deutsch connector ensuring easy and secure connectivity.
Customizable Configuration: InPower’s expert team can assist customers in selecting the appropriate configuration ensuring the best fit for your requirements.

Specifications:

Low Power Consumption: If the output is not active (IN1 & IN2 at GND, and IN3 is +12Vdc with No Transitions) current draw is 6mA.
Single Channel Control: Provides precise control for the 70 Amp feed, allowing seamless switching of loads.
Versatility: Equipped with a microprocessor, enabling the controller to perform various functions based on customer-specified parameters.
Comprehensive Functionality Family Optional Configurations: Optional voltage monitoring, current monitoring, low voltage disconnect, and efficient solid-state contactor control, providing a wide range of optional control options – Contact InPower.
Command Interface: User-friendly control interface via a 6 Pin Deutsch connector ensuring easy and secure connectivity.
Customizable Configuration: InPower’s expert team can assist customers in selecting the appropriate configuration ensuring the best fit for your requirements.

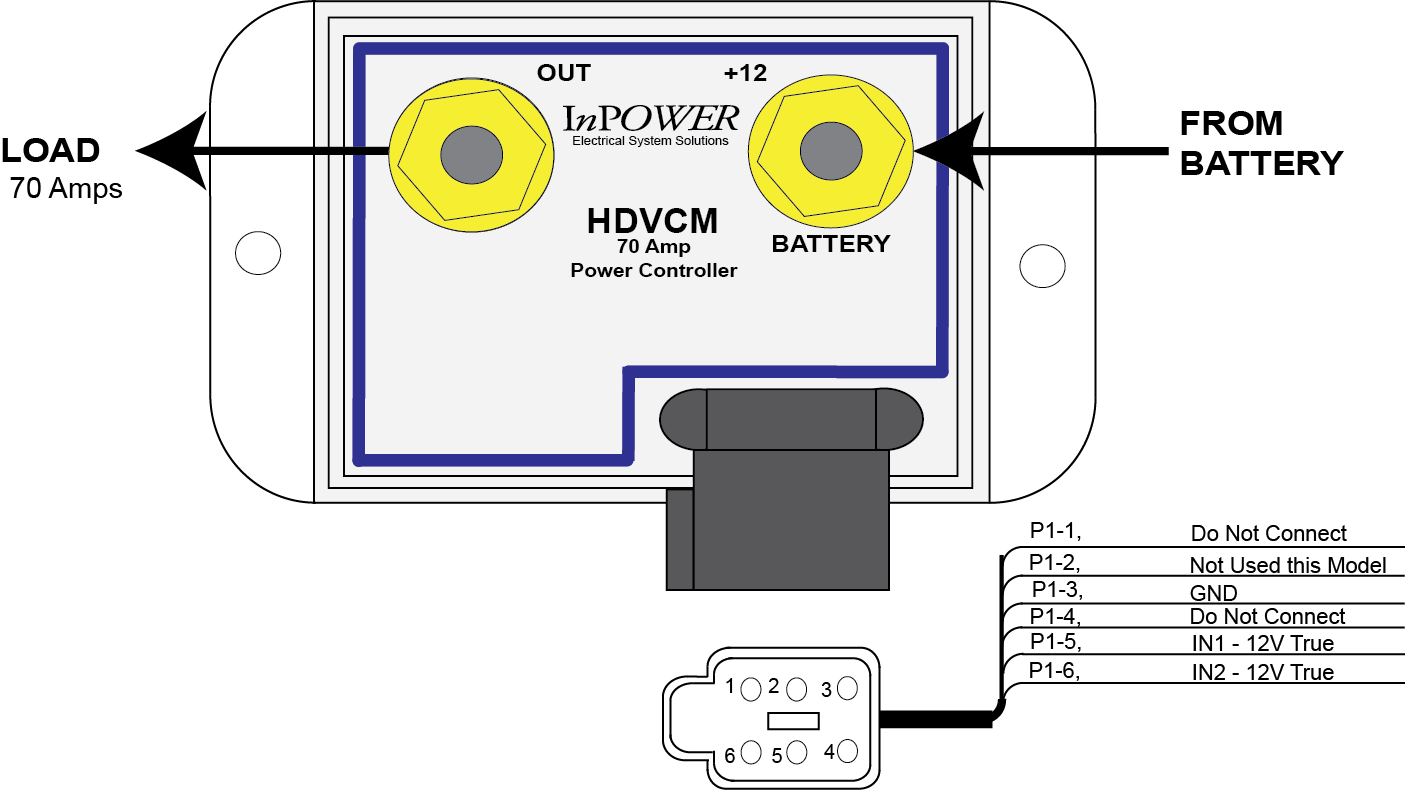

Mechanical Drawings:
